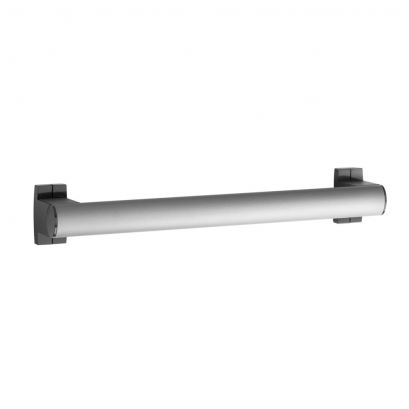

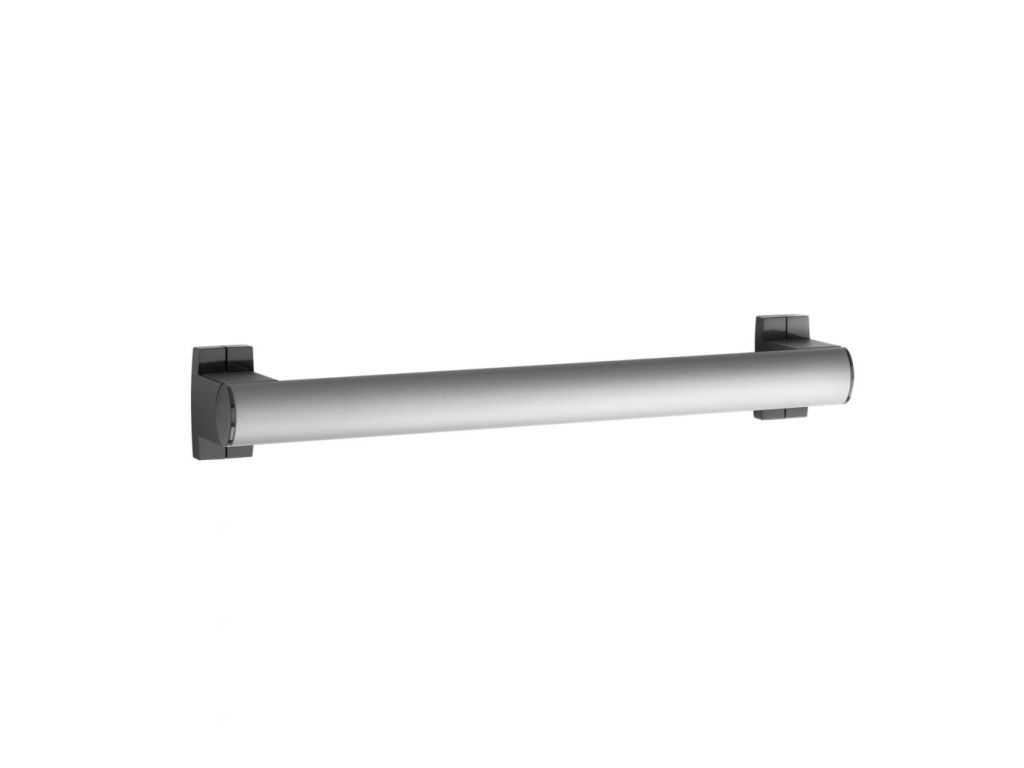

Design15 elliptical straight grab bar, 400 mm, Mat Grey Epoxy-coated Aluminium & Anthracite grey

Design 15 - Mat grey epoxy-coated aluminium grab bars

Les + produit

Corrosion resistant warranty.

Aluminium
Epoxy-coated
400 mm
ce marking : safe load made in france
Full description

Elliptical tube in mat grey epoxy-coated aluminium, 38 x 25 mm.
Anthracite grey epoxy-coated resin flanges and cover plates.

Wall fixings included.
Design coordinated with the Design15 shower seat.

Material  Aluminium
Finish  Epoxy-coated
Color  Grey
Dimensions  400 mm
Gross weight0.500 kg
Net weight  0.445 kg
Packaging  Plastic protection bag + Hanger for display
CE Marking : safe load  150 kg
Laboratory tests  225 kg
Guarantee  5 years
Gencod3111561440017
Custom code 7615200000
Function
Support
Raising
Transfer
Characteristics
Horizontal
Vertical
Diagonal
Corrosion resistant
Type of Use
Bath
Shower
Toilet
Cloakroom/Changeroom
Location of Use
Medical facilities
ERP/IOP
Hotels
Private homes
Workplaces

Recommended height for the horizontal part : 800 mm from the ground.##Grab bars provide support and added safety if properly fitted in accordance with our technical instructions.##Careful consideration and selection of the appropriate wall fixings according to the wall-mounted support is required to ensure the long life of your accessory.##The use of stainless steel screws (Ø 4 mm) is highly recommended to prevent corrosion in damp environment.##Before drilling, physically hold the product against the wall at desired position and mark the hole locations.##All the fixing points must be respected.##After installation and before use, make sure that all fixing screws are tightened securely.##DO NOT use the grab bar as a step. DO NOT sit on or hang from the grab bar.

View all fixing and maintenance advices

Maintenance

IMPORTANT: To ensure the sustainability of the product and user safety, we recommend using a solution made of mild soap for cleaning. CAUTION: DO NOT USE cleaning products made of: etones, hydrocarbons, acids, bases, esters and ethers. After use of a cleaning product, make a rinsing in the clear water.
