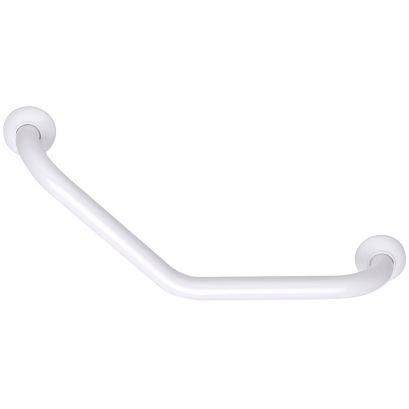

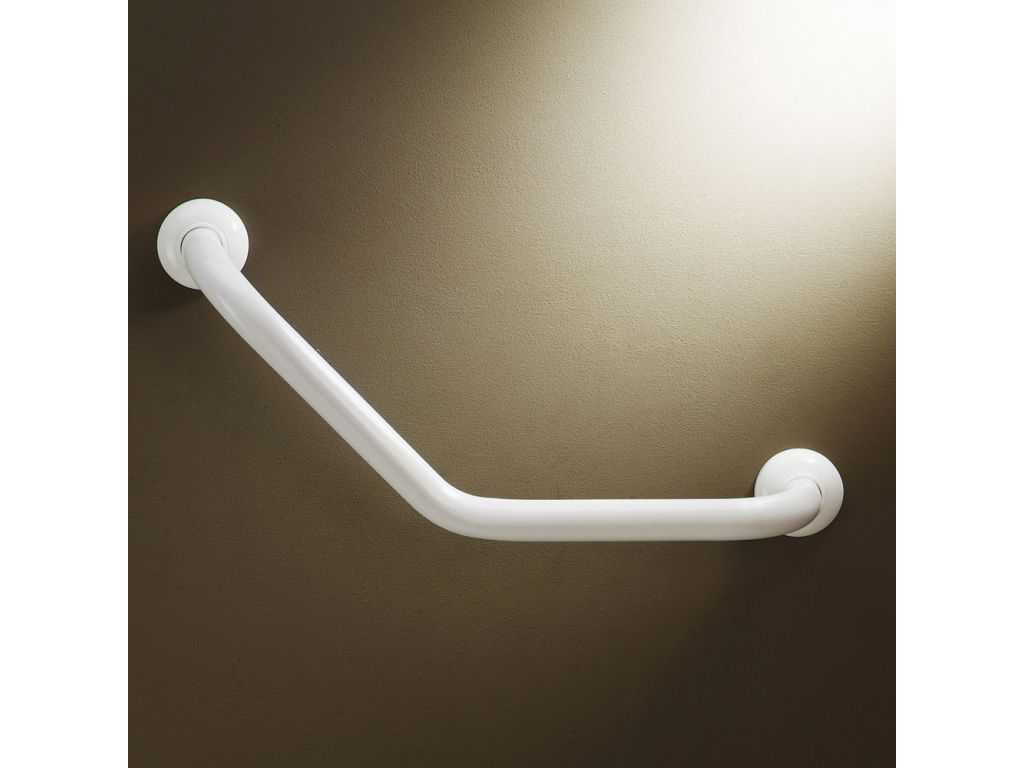

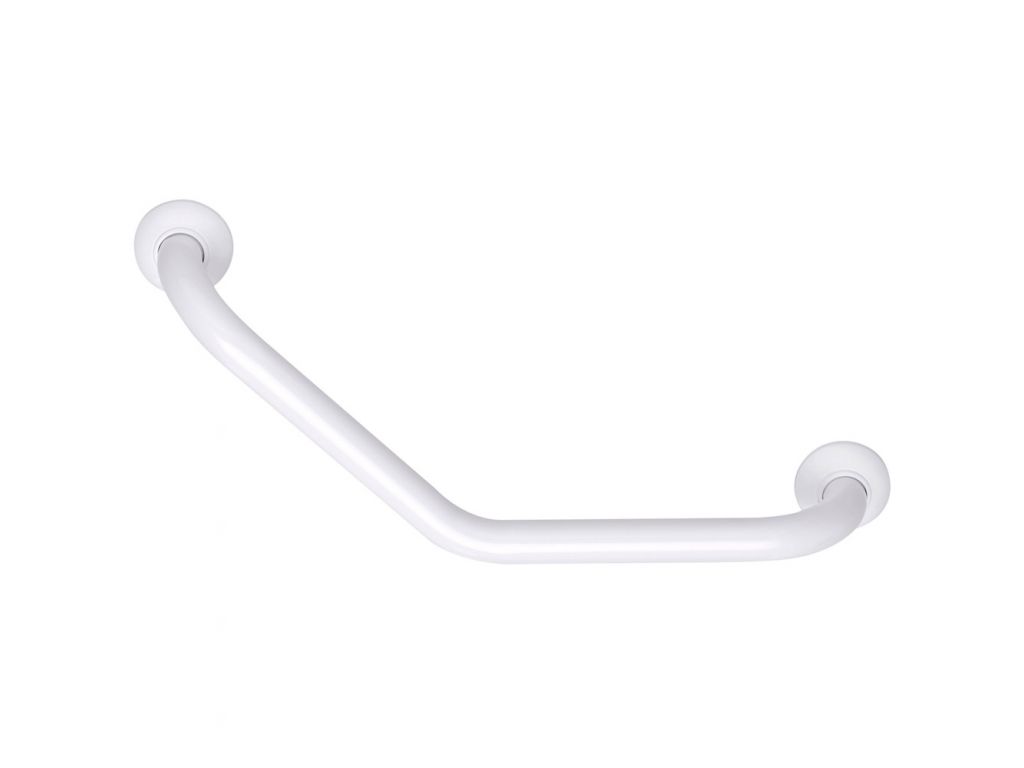

135 degree angle.
Symmetrical.
Concealed fixings.
White epoxy-coated aluminium tube Ø 30 mm.
White resin flanges Ø 67 mm.
"Professional" range.
Design coordinated with the TRIOLO Range accessories.
Fixing screws included (4 x 30 mm).
| Material | Aluminium |
| Finish | Epoxy-coated |
| Color | White |
| Dimensions | 265 x 265 mm |
| Diameter Ø | 30 mm |
| Gross weight | 0.620 kg |
| Net weight | 0.550 kg |
| Packaging | Plastic protection bag + Hanger for display |
| CE Marking : safe load | 150 kg |
| Laboratory tests | 225 kg |
| Guarantee | 5 years |
| Gencod | 3111564923517 |
| Custom code | 7615200000 |
| Function | |
| Support | |
| Raising | |
| Characteristics | |
| Horizontal | |
| Diagonal | |
| Corrosion resistant | |
| Type of Use | |
| Bath | |
| Shower | |
| Toilet | |
| Cloakroom/Changeroom | |
| Location of Use | |
| Medical facilities | |
| ERP/IOP | |
| Hotels | |
| Private homes | |
| Workplaces | |
Recommended height for the horizontal part : 800 mm from the ground.##Grab bars provide support and added safety if properly fitted in accordance with our technical instructions.##Careful consideration and selection of the appropriate wall fixings according to the wall-mounted support is required to ensure the long life of your accessory.##The use of stainless steel screws (Ø 4 mm) is highly recommended to prevent corrosion in damp environment.##Before drilling, physically hold the product against the wall at desired position and mark the hole locations.##All the fixing points must be respected.##After installation and before use, make sure that all fixing screws are tightened securely.##DO NOT use the grab bar as a step. DO NOT sit on or hang from the grab bar.
View all fixing and maintenance advicesMaintenance
IMPORTANT: To ensure the sustainability of the product and user safety, we recommend using a solution made of mild soap for cleaning. CAUTION: DO NOT USE cleaning products made of: etones, hydrocarbons, acids, bases, esters and ethers. After use of a cleaning product, make a rinsing in the clear water.
Ref: 349801
Concealed fixings.
White epoxy-coated aluminium tube Ø 30 mm.
White resin flanges Ø 65 mm.
"General public" range.
42,41 €
Ref: 495551
Symmetrical.
Brushed 304 stainless steel tube Ø 30 mm.
One-piece bar.
Concealed fixings.
Mat chrome-plated resin cover plates Ø 65 mm.
100,82 €

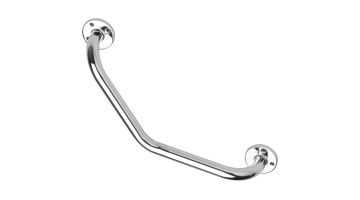

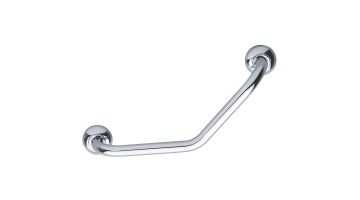

Ref: 549801
Symmetrical.
Concealed fixings.
Chrome and nickel-plated brass tube Ø 25 mm.
Bright chrome-plated resin flanges and cover plates.
"Professional" range.
Wall fixings included.
78,47 €
Ref: 134700
Standard size.
4 white polypropylene slats.
White epoxy-coated aluminium tube.
Enables users to sit down safely and comfortably while showering.
181,14 €
Ref: 488601
White epoxy-coated aluminium tube Ø 30 mm.
One-piece bar.
Synthetic resin flange.
Vertical locking.
Ref: 488601
208,60 €
Ref: 491301
Symmetrical.
Brushed 304 stainless steel tube Ø 30 mm.
One-piece bar.
Concealed fixings.
Mat chrome-plated resin cover plates Ø 67 mm.
Possibility to fix the toilet roll holder ref. 492381 to this bar.
"Professional" range.
Also available with colored cover plates.
Design coordinated with the TRIOLO Range accessories.
Fixing screws included (4 x 30 mm).
Ref: 491301
44,36 €
