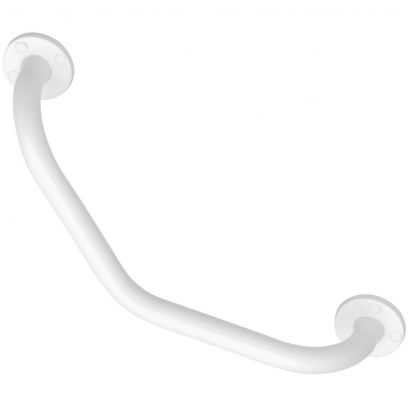

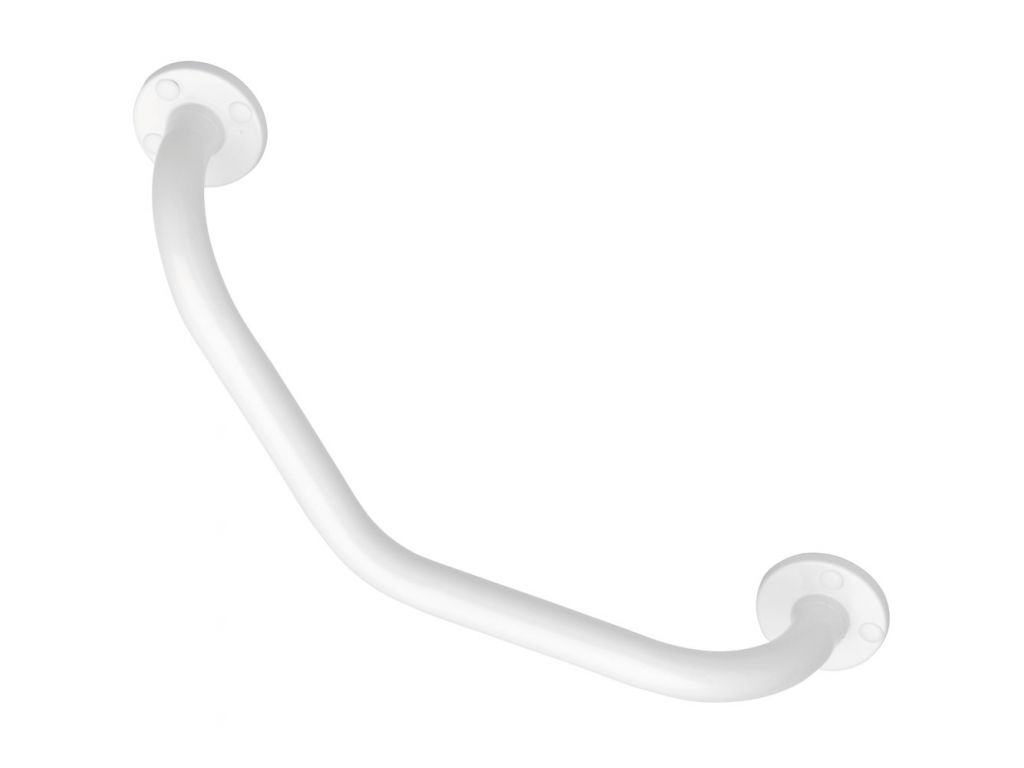

135° angled grab bar, White Epoxy-coated Steel, 225 x 225 mm, Ø 25 mm

WHITE EPOXY COATED STEEL BARS
Steel
Epoxy-coated
225 x 225 mm
25 mm
made in france
Full description

Concealed fixings.
White epoxy-coated aluminium tube Ø 30 mm.
White resin flanges Ø 65 mm.

"General public" range.

Material  Steel
Finish  Epoxy-coated
Color  White
Dimensions  225 x 225 mm
Diameter Ø  25 mm
Gross weight0.391 kg
Packaging  Plastic protection bag + Hanger for display
Maximum Weight Capacity  60 kg
Laboratory tests  150 kg
Guarantee  1 year
Gencod3111564498411
Custom code 7324900010
Function
Support
Raising
Characteristics
Horizontal
Type of Use
Bath
Toilet
Cloakroom/Changeroom
Location of Use
Medical facilities
ERP/IOP
Hotels
Private homes
Workplaces

Recommended height for the horizontal part : 800 mm from the ground.##Grab bars provide support and added safety if properly fitted in accordance with our technical instructions.##Careful consideration and selection of the appropriate wall fixings according to the wall-mounted support is required to ensure the long life of your accessory.##The use of stainless steel screws (Ø 4 mm) is highly recommended to prevent corrosion in damp environment.##Before drilling, physically hold the product against the wall at desired position and mark the hole locations.##All the fixing points must be respected.##After installation and before use, make sure that all fixing screws are tightened securely.##DO NOT use the grab bar as a step. DO NOT sit on or hang from the grab bar.

Maintenance

IMPORTANT: To ensure the sustainability of the product and user safety, we recommend using a solution made of mild soap for cleaning. CAUTION: DO NOT USE cleaning products made of: etones, hydrocarbons, acids, bases, esters and ethers. After use of a cleaning product, make a rinsing in the clear water.

Notice Aucune notice disponible
